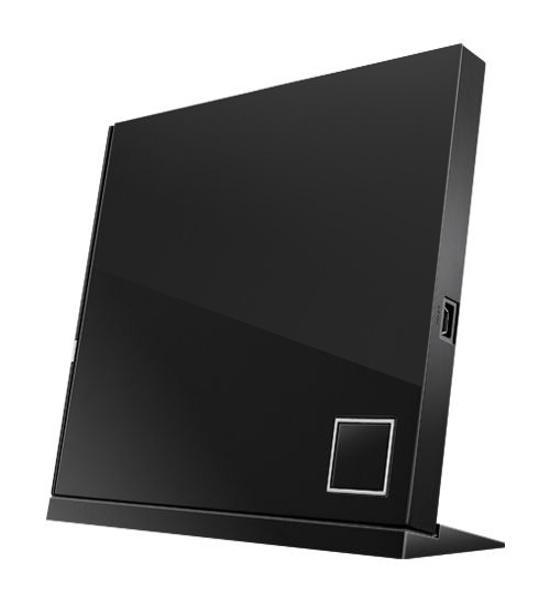

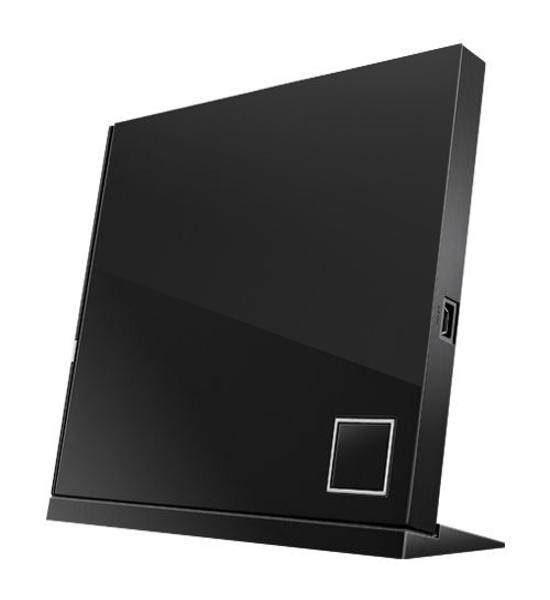

ASUS SBW-06D2X-U 6X Blu-Ray Writer

BDXL™ Format Support

Allows users to burn huge amounts of data on a single Blu-ray disc, up to 100GB on BD-R(TL), and 128GB on BD-R(QL)

The Best Burning Quality

Auto Tuning Power technology ensures optimized power to burn a disc with the best quality

6X Blu-ray High Speed

Turbo Engine enables 6X Blu-ray writing

Double the Security On-the-Go

Disc Encryption II doubles the security with password-controls and hidden-file function, protecting important user data

Drag-and-Burn

Friendly interface with only three simple steps to burn a disc, making the process easier than ever

Flexible Dual Positioning

Vertical and horizontal two-way placement

Award Winning Design

The 2011 iF Design Award product design is inspired from miniaturized architectual forms, using elegant squared lines and a unique stand

Color

Black

Read Speed

BD-R : 6X BD-RE : 6X BD-ROM : 6X BD-R(DL) : 6X BD-RE(DL) : 6X BD-ROM(DL) : 6X BD-R(TL/QL) : 4X BD-RE(TL) : 2X DVD+R : 8X DVD-R : 8X DVD+RW : 8X DVD-RW : 8X DVD-ROM : 8X DVD+R(DL) : 6X DVD-R(DL) : 6X DVD-ROM(DL) : 6X DVD-RAM : 5X CD-R : 24X CD-RW : 24X CD-ROM : 24X BDMV Playback : 2X DVD Video Playback : 4X VCD Playback : 10X Audio CD Playback : 10X

Write Speed

BD-R : 6X BD-R(DL) : 6X BD-R(TL/QL) : 4X BD-RE : 2X BD-RE(DL) : 2X BD-RE(TL) : 2X DVD+R : 8X DVD-R : 8X DVD+RW : 8X DVD-RW : 6X DVD+R(DL) : 6X DVD-R (DL) : 6X DVD-RAM : 5X CD-R : 24X CD-RW : 16X

Writing Mode

BD-RE : Random Write BD-R : Sequential Write DVD+R & DVD+R (DL) : Sequential Write DVD-R & DVD-R(DL) : DAO/Incremental Recording DVD+RW : Random Write DVD-RW : DAO/Restricted Overwrite/Incremental Recording DVD-RAM : Random Write CD-R/RW : DAO/TAO/SAO/Packet Write

Access time

BD(SL/DL) : 300 ms BD(TL/QL) : 450 ms DVD : 190 ms CD : 190 ms

Interface

USB 2.0

OS Support

Windows® 10 Windows® 8 Windows® 7 Windows® Vista Windows® XP Mac OS X 10.6

System Requirements

CPU: Intel Pentium® D 945(3.4GHz) or higher RAM: 1GB or more is recommended Graphics Card: NVIDIA® GeForce 7600 GT or ATI X1600 series or above Use HDCP Compatible display and VGA card to High Definition digital output

Software

Cyberlink Power2Go 8 TurboEngine

Disc Formats

Audio CD, Video CD, CD-I, CD-Extra, Photo CD, CD-Text, CD-ROM/XA, Multi-session CD, BD video, DVD Video

Disc Diameters

12cm/8cm

Dimensions

157 x 140 x 18.5 ~ cm (LxWxH)

Weight

290 g 335 g (With Stand)

Power

USB Power +5V ± 5%

Temperature

Operating : 5 ℃ to 40 ℃ Storage : -30 ℃ to 60 ℃

Humidity

Operating : 15 % ~ 80 % (Non-condensing) Storage : 10 % ~ 90 % (Non-condensing)
