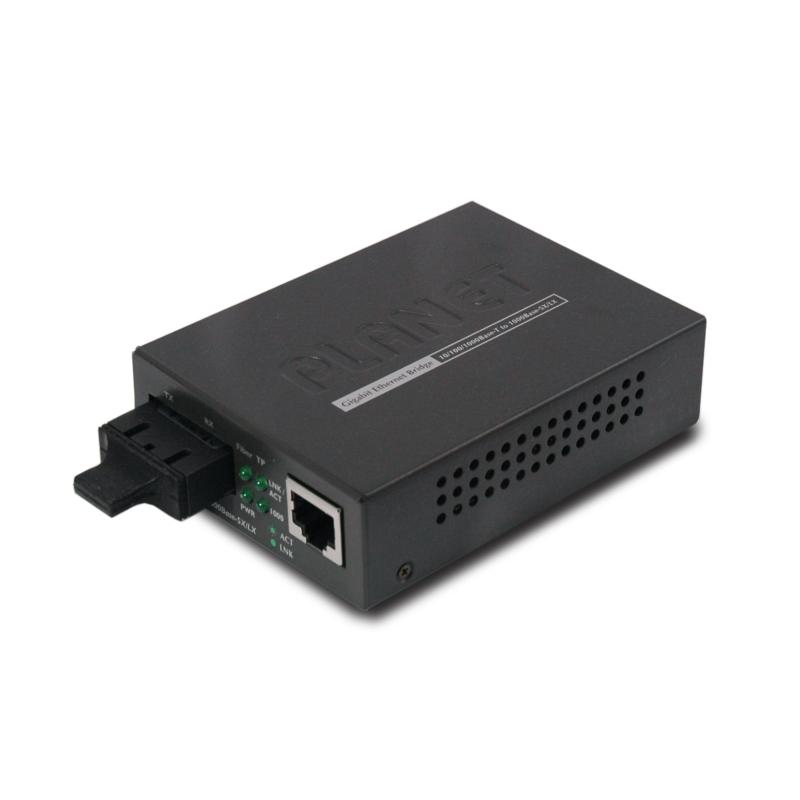

Planet Gt-802S 10/100/1000Base-T To 1000Base-Lx Gigabit Converter (Single Mode)

Planet Gt-802S 10/100/1000Base-T To 1000Base-Lx Gigabit Converter (Single Mode)

Category: USB Hubs
Status: In stock
SGD 159.00
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Hardware Specifications
  • Hardware Version 3
  • Standards IEEE 802.3, 10Base-T
  • IEEE 802.3u, 100Base-TX
  • IEEE 802.3ab, 1000Base-T
  • IEEE 802.3z, 1000Base-SX/LX
  • Ports 1 x 10/100/1000Base-T port,
  • 1 x 1000Base-SX/LX port
  • Copper Interface RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
  • Optic Interface GT-802/GT-802S: SC
  • GT-805A: SFP
  • GT-806A15/GT-806B15/GT-806A60/GT-806B60: WDM
  • Fiber Maximum Distance GT-802: 220 / 550m
  • GT-802S: 10km
  • GT-805A: N/A
  • GT-806A15: 15km
  • GT-806B15: 15km
  • GT-806A60: 60km
  • GT-806B60: 60km
  • Optic Wavelength GT-802: 850nm
  • GT-802S: 1310nm
  • GT-805A: N/A
  • GT-806A15:
  •   TX:1310nm
  •   RX:1550nm
  • GT-806B15:
  •   TX:1550nm
  •   RX:1310nm
  • GT-806A60:
  •   TX:1310nm
  •   RX:1550nm
  • GT-806B60:
  •   TX:1550nm
  •   RX:1310nm
  • Max. Optical Launch Power GT-802: -4dBm
  • GT-802S: -3dBm
  • GT-805A: N/A
  • GT-806A15: -3dBm
  • GT-806B15: -3dBm
  • GT-806A60: +5dBm
  • GT-806B60: +4dBm
  • Min. Optical Launch Power GT-802: -9.5dBm
  • GT-802S: -9.5dBm
  • GT-805A: N/A
  • GT-806A15: -9dBm
  • GT-806B15: -9dBm
  • GT-806A60: 0dBm
  • GT-806B60: -1dBm
  • Max. Input Power GT-802: N/A
  • GT-802S: -3
  • GT-805A: N/A
  • GT-806A15: -3
  • GT-806B15: -3
  • GT-806A60: -2
  • GT-806B60: -2
  • Min. Input Power GT-802: -18
  • GT-802S: -20
  • GT-805A: N/A
  • GT-806A15: -21
  • GT-806B15: -21
  • GT-806A60: -25
  • GT-806B60: -25
  • Optical Link Budget GT-802:
  •   3dB(62.5/125μm)
  •   4dB(50/125μm)
  • GT-802S: 4.9dB
  • GT-805A: N/A
  • GT-806A15: 12dB
  • GT-806B15: 12dB
  • GT-806A60: 25dB
  • GT-806B60: 24dB
  • Speed Twisted-pair:
  •   10/20Mbps for half/full-duplex
  •   100/200Mbps for half/full duplex
  •   2000Mbps for full-duplex
  • Fiber-optic: 2000Mbps for full-duplex
  • Cable Twisted-pair
  •   10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m
  •   100Base-TX: 2-pair UTP Cat. 5, up to 100m
  •   1000Base-T: 4-pair STP Cat 5 up to 100m
  • Fiber-optic Cable
  •   50/125μm or 62.5/125μm multi-mode fiber cable, up to
  •   220/550m.
  •   9/125μm single-mode cable, providing long distance for
  •   10/15/20/30/40/50/60/70/120km (vary on fiber transceiver
  •   or SFP module)
  • LED Indicator ‧PWR
  • ‧TP LINK/ACT, 1000
  • ‧Fiber LINK/ACT
  • DIP Switch LFP function (Disable / Enable) setting
  • OAM TS-1000 and IEEE 802.3ah Terminal mode supported
  • Jumbo Packet Size 9K
  • Power Consumption 4.6 watts / 15 BTU (maximum)
  • Power Input DC 5V / 2A
  • Dimensions (W x D x H) 26 x 70 x 97 mm
  • Weight 0.2kg
  • Operating Environment Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing
  • Storage Environment storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing
  • Emissions FCC Class A, CE Class A
