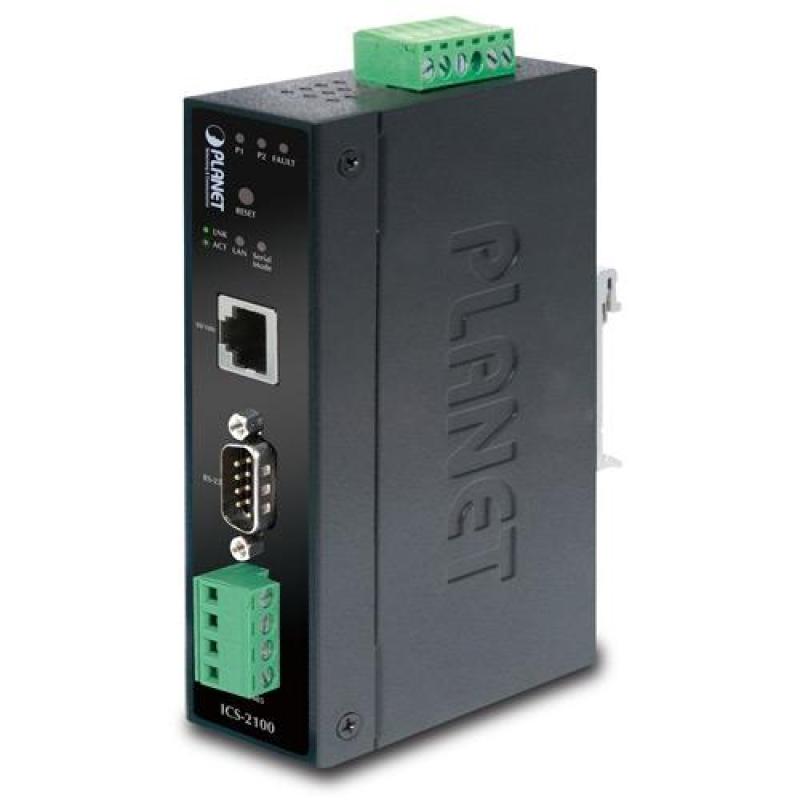

Planet Ics-2100 Ip30 Industrial Rs232/Rs-422/Rs485 To Ethernet (Tp) Converter

Planet Ics-2100 Ip30 Industrial Rs232/Rs-422/Rs485 To Ethernet (Tp) Converter

Category: USB Hubs
Status: In stock
SGD 208.00
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Serial Port
  • Interface RS-232 x 1
  • RS-422 / RS-485 x 1
  • Connector DB9 for RS-232
  • Terminal block for RS-422 / RS-485
  • Baud Rate (Data Rate) 300bps to 230400bps
  • Data Bits 5,6,7,8
  • Parity Type 1, 1.5/2
  • Stop Bit Odd, Even, None, Space, Mark
  • Flow Control Hardware, None
  • Signals RS-232: DCD, RxD, TxD, GND, RI
  • RS-422: Tx+, Tx-, Rx+, Rx-
  • RS-485: Data A (+), Data B (-)
  • Fast Ethernet Port
  • Standard 10/100Base-TX
  • Connector RJ-45
  • Distance 100m
  • Cable Twisted-pair
  • Hardware
  • LED Indicators System: Power 1, Power 2, Fault
  • TP or Fiber Port: Link / Active
  • Serial Port: Serial port mode, RS-232, RS-422 or RS-485
  • Management Web Management
  • PLANET Smart Discovery Utility
  • VCOM
  • Operation Mode TCP Server
  • TCP Client
  • UDP Client
  • Virtual COM
  • Telnet Server
  • Pair Connection – Remote (Slave)
  • Pair Connection – Local (Master)
  • Dimension (W x D x H) 10 x 97 x 32 mm
  • Weight 425g
  • Power Supply 12~48 VDC, Redundant power with polarity reverse protection function
  • Power Consumption 10.1 Watts / 34.44 BTU (max)
  • Installation DIN rail kit and wall mount ear
  • Alarm Provides one relay output for power fail, Alarm Relay current carry ability: 1A @ DC 24V
  • Mechanical Metal
  • Environment Operating Temperature: -10~60 Degree C
  • Storage Temperature: -20~75 Degree C
  • Operating Humidity: 10~90% RH
  • Storage Humidity: 5~90% RH
  • Emissions FCC Class A, CE Certification Class A
  • Standards IEEE 802.3 10Base-T,
  • IEEE 802.3u 100Base-TX
  • EIA/TIA RS-232/422/485
  • Regulatory Approval RoHS
  • Stability Testing IEC60068-2-32(Free fall),
  • IEC60068-2-27(Shock),
  • IEC60068-2-6(Vibration)
  • Note Reset Button at the front panel for reset to factory default
