SMAKN® Rs485 Active Isolated Repeater Rs485 Hub - intl

SMAKN® Rs485 Active Isolated Repeater Rs485 Hub - intl

Category: USB Hubs
Status: In stock
SGD 89.43
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

Product details of SMAKN® Rs485 Active Isolated Repeater Rs485 Hub - intl

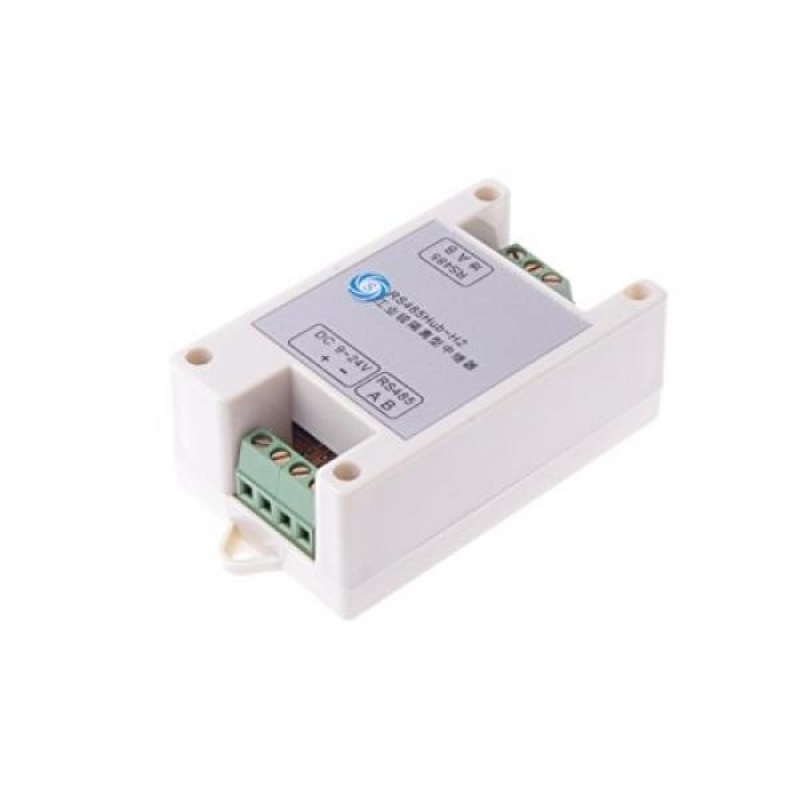

SMAKN® Rs485 Active Isolated Repeater Rs485 Hub







Product Description

*Working mode: asynchronous transfer , point to point, multipoint, two-wire half duplex. *Transmission medium : Ordinary Line , twisted pair or shielded cable is recommended to use shielded twisted pair wire or a dedicated communications. *Baud Rate : 300 - 115200bps, automatically detects serial signal baud rate. *Direction control : automatically determine the direction of the automatic control of data transmission. *Transmission distance: 1500 meters *Communication protocol: transparent transmission *Interface protection : 1500W surge protection , 15KV ESD protection , 2500V isolation communication , lightning *Working environment : 0 ℃ - 60 ℃, relative humidity 5 % to 95%. *Cascade : RS485 terminal can cascade up to enhanced RS485 device 256 . (The actual number of devices that can be concatenated depends on the application equipment used for other. *485 chip type, the current ordinary 485 chips can be cascaded to 32 communication nodes , enhanced cascade up to 256 communication nodes . Of course , the practical application. *You can also reach the number of nodes and communications environment, cables , communication distance , the communication speed has a relationship) . *Power supply: *Input Power : DC9 - 24V wide-range DC voltage input *Power consumption: static around 40mA, 60mA dynamic *Dimensions:Length * width * height : 82 * 50 * 32mm *Weight:68g Feedback: We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, so we will try our best to solve any problem.Thank you very much!

Feature

Input Power : DC9 - 24V wide-range DC voltage input.
Power consumption: static around 40mA, 60mA dynamic.
Dimensions:Length * width * height : 82 * 50 * 32mm
Weight:68g
Working mode: asynchronous transfer , point to point, multipoint, two-wire half duplex.
Brand : SMAKN
Item model num : LYSB00XXO39SA-ELECTRNCS
MPN(PartNumber) : LYSB00XXO39SA-ELECTRNCS
EAN : 0709127323206
Product Dimensions(LxWxH) : 26x18x5cm ; 136 g
Package Dimensions(LxWxH) : 26x18x5cm ; 136 g

Specifications of SMAKN® Rs485 Active Isolated Repeater Rs485 Hub - intl

What's in the box:
  • 1 x SMAKN® Rs485 Active Isolated Repeater Rs485 Hub
General Features:
SKU SM921ELAAZH5TTSGAMZ-74495184
Model SMAKN
Warranty type No Warranty
